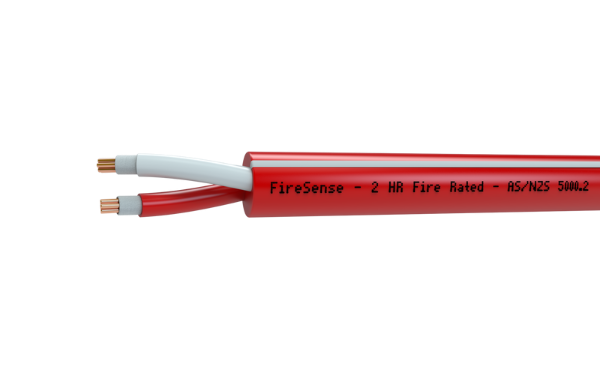

2HR Fire Rated Cable - 2.50mm 2 Core - White Stripe

Uses: LV applications. EWIS speaker circuits (100V line).

AS 1670.2018 requires all cables that are LV (EWIS speaker circuits) to have a white stripe to differentiate from ELV cables.

• 2HR Fire Rated – WS52W
• White stripe for speaker circuit identification
• PVC Free - Low Smoke Zero Halogen (LSZH) - certified by Bureau Veritas & GECA
• ActivFire certified
• RCM / Global Mark certified
• Green Building Code of Australia / Green Star compliant
• 110°C continuous operation
• 450/750V voltage rating
• Fire & Mechanical Protection - AS/NZS 3013, AS/NZS 4507 (RHE-3)
• Cable Construction - AS/NZS 5000.2
• ACMA Compliance - AS/CA S008
• AS 1670:2018 Markings
• 8-10 twists per meter
• Smallest diameter on the market
• Flexible, easy to strip, install & terminate

FireSense 2HR Fire Rated Fire Alarm cables have been specifically designed for use with Australian Fire Alarm & EWIS systems. FireSense 2Hr Fire Rated 2 Core White Stripe Cables are used for LV applications and EWIS Speaker Circuits (100V line).

Independently tested and approved to the requirements of AS/NZS 3013 for both fire and mechanical cable properties. These cables are certified 2 hour fire rated, are ActivFire certified and meet the stringent impact and cutting test requirements of AS/NZS 3013. Cables have a reduced outside diameter which allows 2 cables to fit within a single conduit providing ease of installation. They are flexible, easy to strip, install and terminate, saving valuable time on site.

Environmentally friendly meeting the Green Building Code of Australia / Green Star requirements, all FireSense 2HR Fire Rated cables are made from LSZH materials & have third party PVC Free Certification from Bureau Veritas and Good Environmental Choices Australia (GECA).

FireSense cables are the only FULL range of ActivFire certified cable in Australia.

For more information or to view other cables in our range, view the FireSense Fire Cable Range booklet ↗.
