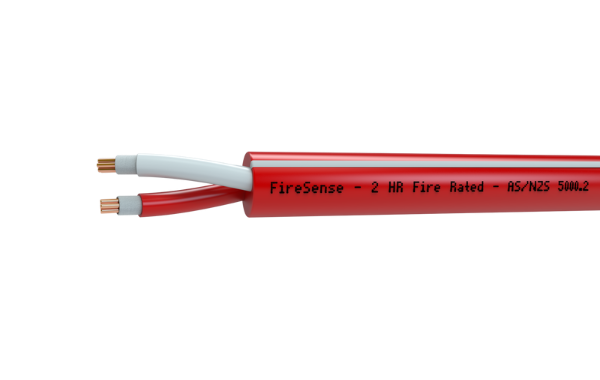

2HR Fire Rated Cable - 1.00mm 2 Core - White Stripe

Code : FR-1.00-2CW

Product availability : Australia Wide
For further information, please contact your local branch, and our staff will assist you.

Available ex stock on 250m, 500m & bulk drums. Can be cut to length for project.

Uses: LV applications. EWIS speaker circuits (100V line).

AS 1670.2018 requires all cables that are LV (EWIS speaker circuits) to have a white stripe to differentiate from ELV cables.
  • 2HR Fire Rated – WS51W
  • White stripe for speaker circuit identification
  • PVC Free - Low Smoke Zero Halogen (LSZH) - certified by Bureau Veritas & GECA
  • ActivFire certified
  • RCM / Global Mark certified
  • Green Building Code of Australia / Green Star compliant
  • 110°C continuous operation
  • 450/750V voltage rating
  • Fire & Mechanical Protection - AS/NZS 3013, AS/NZS 4507 (RHE-3)
  • Cable Construction - AS/NZS 5000.2
  • ACMA Compliance - AS/CA S008
  • AS 1670:2018 Markings
  • 8-10 twists per meter
  • Smallest diameter on the market
  • Flexible, easy to strip, install & terminate

FireSense 2HR Fire Rated Fire Alarm cables have been specifically designed for use with Australian Fire Alarm & EWIS systems.  Independently tested and approved to the requirements of AS/NZS 3013 for both fire and mechanical cable properties.

Environmentally friendly meeting the Green Building Code of Australia / Green Star requirements, all FireSense 2HR Fire Rated cables are made from LSZH materials & have third party PVC Free certification from Bureau Veritas and Good Environmental Choices Australia (GECA).

FireSense cables are the only FULL range of ActivFire certified cable in Australia.
