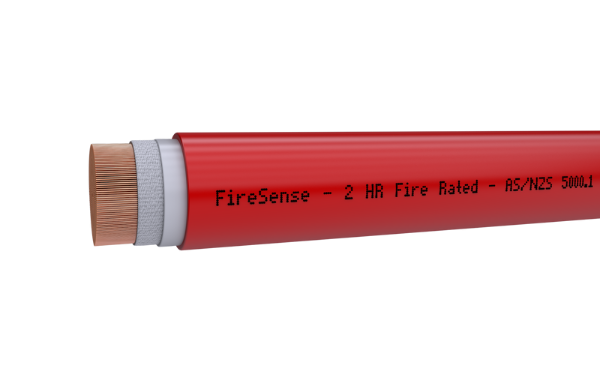

2HR Fire Rated Single Core Cable - 25mm

Code : FR-25-1C

Product availability : Australia Wide
For further information, please contact your local branch, and our staff will assist you.

Cable is cut to length per order.

Uses: Submain and Mechanical Service Switchboard (MSSB) feeds

  • 2HR Fire Rated - WS52W
  • PVC Free - Low Smoke Zero Halogen (LSZH) - certified by Bureau Veritas & GECA
  • ActivFire certified
  • RCM / Global Mark certified
  • Green Building Code of Australia / Green Star compliant
  • 110°C continuous operation
  • 0.6 / 1kV voltage rating
  • Single Double Insulated
  • Fire & Mechanical Protection - AS/NZS 3013, AS/NZS 4507 (RHE-3)
  • Cable Construction - AS/NZS 5000.1
  • ACMA Compliance - AS/CA S008
  • Flexible Class 6 conductors
  • Flexible, easy to strip, install & terminate

FireSense Fire Rated Single Core cables are ideal for use in submains and Mechanical Service Switchboard (MSSB) feeds. They are designed for 110°C continuous operating temperature, using Class 6 Flexible conductors making them easy to install and ideal for downsizing and high current applications. Independently tested and approved to the requirements of AS/NZS 3013 for both fire and mechanical cable properties.

Environmentally friendly meeting the Green Building Code of Australia / Green Star requirements, all FireSense 2HR Fire Rated cables are made from LSZH materials & have third party PVC Free Certification from Bureau Veritas and Good Environmental Choices Australia (GECA).

FireSense cables are the only FULL range of ActivFire certified cable in Australia.

To view the full FireSense Cable Range booklet click here
