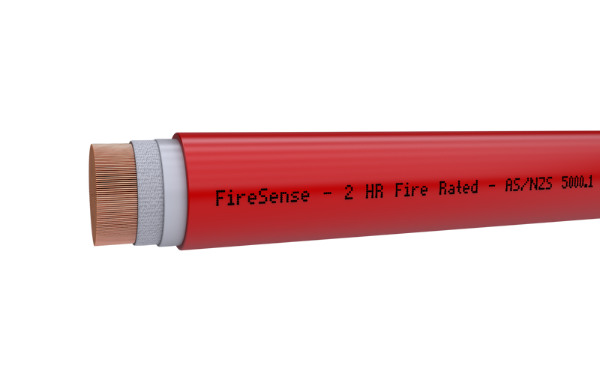

2HR Fire Rated Single Core Cable - 95mm

Uses: Submain and Mechanical Service Switchboard (MSSB) feeds

• 2HR Fire Rated - WS52W
• PVC Free - Low Smoke Zero Halogen (LSZH) - certified by Bureau Veritas & GECA
• ActivFire certified
• RCM / Global Mark certified
• Green Building Code of Australia / Green Star compliant
• 110°C continuous operation
• 0.6 / 1kV voltage rating
• Single Double Insulated
• Fire & Mechanical Protection - AS/NZS 3013, AS/NZS 4507 (RHE-3)
• Cable Construction - AS/NZS 5000.1
• ACMA Compliance - AS/CA S008
• Flexible Class 6 conductors
• Flexible, easy to strip, install & terminate

FireSense fire rated cables have been specifically designed for use within the Fire Alarm and Mechanical/Electrical industries. FireSense 2HR Fire Rated Single Core cables are ideal for use in submains and Mechanical Service Switchboard (MSSB) feeds. They are designed for 110°C continuous operating temperature, constructed from the highest quality cross-linked polymers and 100% pure annealed conductors delivering excellent electrical performance. Class 6 Flexible conductors make them easy to install and ideal for downsizing and high current applications.

Independently tested and approved to the requirements of AS/NZS 3013 for both fire and mechanical cable properties.

Environmentally friendly meeting the Green Building Code of Australia / Green Star requirements, all FireSense 2HR Fire Rated cables are made from LSZH materials & have third party PVC Free certification from Bureau Veritas and Good Environmental Choices Australia (GECA).

FireSense’s highly specialised insulation and outersheath materials meet the stringent impact and cutting test requirements of AS/NZS 3013, yet are flexible, easy to strip, install and terminate, saving valuable time on site.

FireSense cables are the only FULL range of ActivFire certified cable in Australia.

For more information or to view other cables in our range, view the FireSense Fire Cable Range booklet ↗.
