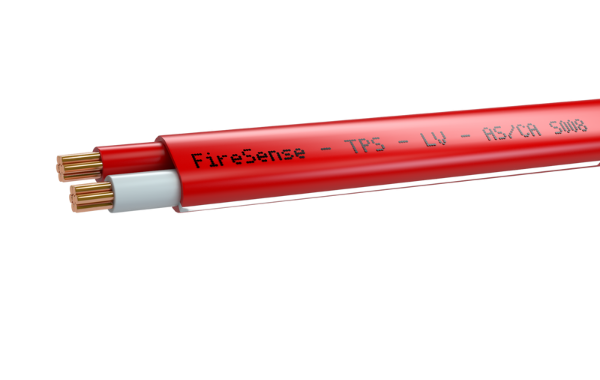

Flat White Stripe TPS - 0.75mm 2 Core (500m)
Code : TPSLD-0.75-2CW-500
Product availability : Australia Wide
Available on 200m or 500m drums
Uses: LV applications. Speaker feeds (100V line).
- Double insulated red outer sheath marked as “fire alarm cable”
- ActivFire certified
- Best Environmental Practice PVC v 2.0 certified - Bureau Veritas
- Independently certified & licensed to meet Green Building Code of Australia / Green Star requirements
- Easy to strip, install & terminate
- 250/250V voltage rating
- PVC V-90 insulation and sheath
- Red and white cores
- Metre markings
- ELV/LV markings as per AS/NZS 1670:2018
- WSX1 Mechanical protection to AS/NZS 3013 & complying with AS1670.1.2018
- AS/CA S008 compliant
FireSense TPS Fire Alarm cables (formerly known as ‘Red’ TPS cables) are ideal for cabling between Fire Alarm, OWS & EWIS systems to ancillary devices eg detectors, speakers, strobes & field modules.
FireSense TPS cables are ActivFire Certified and double insulated with a red outer sheath marked as ‘fire alarm cable’, which is easy to strip, install and terminate. The FireSense TPS Cable range was the first cable in Australia to be licensed under Best Environment Practice PVC v2.0, meeting Green Building Code Australia / Green Star requirements. WSX1 mechanical protection to AS/NZS 3013 & compliant with Australian fire alarm installation standards.
FireSense TPS WHITE STRIPE cable enables the installer to distinguish between speaker & detector circuits. It is used for LV applications and speaker feeds/audio circuits (100V line) & must be used for OWS & EWIS Systems as per AS1670:2018.
Additional products in the FireSense TPS Fire Alarm range include:-
- ‘Flat' TPS cable is used for ELV applications & cabling from Fire Alarm systems to ancillary devices & detection circuits.
- ‘Twisted’ TPS cable for ELV applications & cabling between addressable fire panels & ancillary devices.
- ‘Twisted Screened’ TPS Cable for ELV applications & cabling of VESDA & other communication networks.
Refer to each panel manufacturer for their wiring requirements. More information can be found on the specific product pages/data sheets, or our expert cable team can help you to determine the best product for your project.
For more information or to view other cables in our range, view the FireSense Fire Cable Range booklet ↗.
