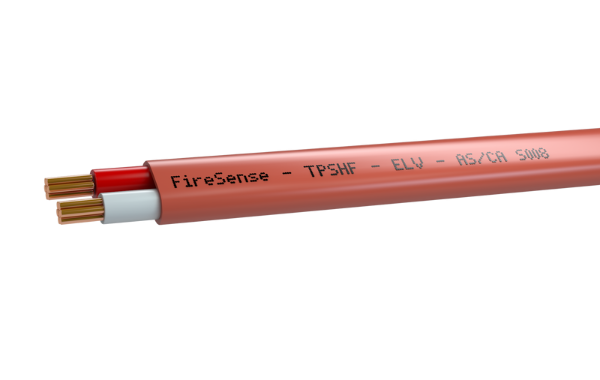

TPS Halogen Free - Flat – 1.50mm 2 Core (500m)

Uses: Cabling from Fire Alarm systems to ancillary devices in underground environments or where a Halogen Free (PVC Free) cable is required. ELV applications.

• PVC Free - Low Smoke Zero Halogen (LSZH)
• Low smoke, low acid & low toxicity insulation & sheath materials
• Environmentally friendly
• Green Building Code of Australia / Green Star compliant
• Independently PVC Free certified - Bureau Veritas & GECA
• Double insulated red outer sheath marked as “fire alarm cable”
• Easy to strip, install & terminate
• Red and white cores
• Metre markings
• ELV/LV markings as per AS/NZS 1670:2018
• WSX1 Mechanical protection to AS/NZS 3013 & complying with AS1670.1.2018
• AS/CA S008 compliant

FireSense TPS Fire Alarm – HALOGEN FREE (PVC Free) cables are made from Low Smoke Zero Halogen (LSZH) materials. They are used for cabling between Fire Alarm, OWS & EWIS systems to ancillary devices eg detectors, speakers, strobes & field modules and are ideal for underground environments eg tunnels or where a LSZH cable is required.

FireSense TPS Fire Alarm – Halogen Free (PVC Free) cables are double insulated with a red outer sheath marked as ‘fire alarm cable’, which are low smoke, low acid & low toxicity as well as being easy to strip, install and terminate. This range features WSX1 mechanical protection to AS/NZS 3013 & is compliant with AS1670.1.2018 Fire Alarm Installation Standards.

This range is environmentally friendly meeting the Green Building Code of Australia / Green Star requirements & is independently ‘PVC Free’ certified by Bureau Veritas and GECA (Good Environmental Choices Australia).

FireSense TPS Halogen Free FLAT cable is used for ELV applications & cabling from Fire Alarm systems to ancillary devices & detection in underground environments or where a LSZH cable is required.

Additional products in the FireSense TPS Fire Alarm – Halogen Free (PVC Free) range include:-

• ‘Halogen Free Flat White Stripe’ cable is used for speaker feeds (100V line) & must be used for OWS & EWIS Systems as per AS1670:2018. LV applications in underground environments or where a LSZH cable is required.
• ‘Halogen Free - Twisted’ TPS cable for ELV applications & cabling between addressable fire panels & ancillary devices in underground environments or where a LSZH cable is required.

Refer to each panel manufacturer for their wiring requirements. More information can be found on the  specific product pages/data sheets, or our expert cable team can help you to determine the best product for your project.
