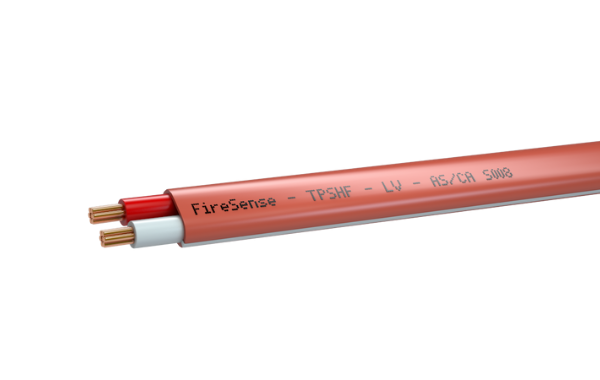

TPS Halogen Free - Flat White Stripe - 1.50mm 2 Core (500m)

Code : TPSHF-1.50-2CW-500

Product availability : Australia Wide
For further information, please contact your local branch, and our staff will assist you.

Available on 500m drums

Uses: Speaker feeds (100V line) in underground environments or where a Low Smoke Zero Halogen (PVC Free) cable is required. LV applications. Must be used for OWS & EWIS Systems as per AS/NZS 1670:2018.

  • PVC Free - Low Smoke Zero Halogen (LSZH)
  • Low smoke, low acid & low toxicity insulation & sheath materials
  • Environmentally friendly
  • Green Building Code of Australia / Green Star compliant
  • Independently PVC Free certified - Bureau Veritas & GECA
  • Double insulated red outer sheath marked as “fire alarm cable”
  • Easy to strip, install & terminate
  • Red and white cores
  • Metre markings
  • ELV/LV markings as per AS/NZS 1670:2018
  • WSX1 Mechanical protection to AS/NZS 3013 & complying with AS1670.1.2018
  • AS/CA S008 compliant

FireSense TPS Fire Alarm – HALOGEN FREE (PVC Free) cables are made from Low Smoke Zero Halogen (LSZH) materials. They are used for cabling between Fire Alarm, OWS & EWIS systems to ancillary devices eg detectors, speakers, strobes & field modules and are ideal for underground environments eg tunnels or where a LSZH cable is required.

FireSense TPS Fire Alarm – Halogen Free (PVC Free) cables are double insulated with a red outer sheath marked as ‘fire alarm cable’, which are low smoke, low acid & low toxicity as well as being easy to strip, install and terminate. This range features WSX1 mechanical protection to AS/NZS 3013 & is compliant with AS1670.1.2018 Fire Alarm Installation Standards. Environmentally friendly meeting the Green Building Code of Australia / Green Star requirements & independently ‘PVC Free’ certified by Bureau Veritas and GECA (Good Environmental Choices Australia).

FireSense TPS Halogen Free FLAT WHITE STRIPE cable enables installers to distinguish between speaker & detector circuits & must be used for OWS & EWIS Systems. It is used for LV applications in underground environments or where a Low Smoke Zero Halogen (PVC Free) cable is required.

Additional products in the FireSense TPS Fire Alarm – Halogen Free (PVC Free) range include:-

  • ‘Halogen Free Flat’ cable is used for ELV applications & cabling from Fire Alarm systems to ancillary devices & detection in underground environments or where a LSZH cable is required.
  • ‘Halogen Free Twisted’ TPS cable for ELV applications & cabling between addressable fire panels & ancillary devices in underground environments or where a LSZH cable is required.

Refer to each panel manufacturer for their wiring requirements. More information can be found on the  specific product pages/data sheets, or our expert cable team can help you to determine the best product for your project.
