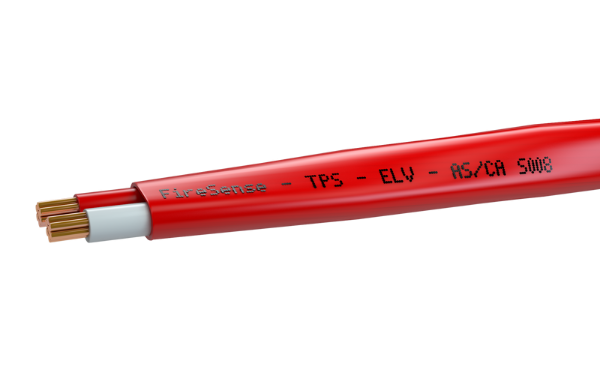

Twisted TPS - 1.50mm 2 Core (500m)
Code : TPS-1.50-2CT-500
Product availability : Australia Wide
Available on 200m or 500m drums
Uses: ELV applications. Cabling between addressable fire panels & ancillary devices.
- Double insulated red outer sheath marked as “fire alarm cable”
- ActivFire certified
- Best Environmental Practice PVC v 2.0 certified - Bureau Veritas
- Independently certified & licensed to meet Green Building Code of Australia / Green Star requirements
- Easy to strip, install & terminate
- 250/250V voltage rating
- PVC V-90 insulation and sheath
- Red and white cores
- Metre markings
- ELV/LV markings as per AS/NZS 1670:2018
- WSX1 Mechanical protection to AS/NZS 3013 & complying with AS1670.1.2018
- AS/CA S008 compliant
FireSense TPS Fire Alarm cables (formerly known as ‘Red’ TPS cables) are ideal for cabling between Fire Alarm, OWS & EWIS systems to ancillary devices eg detectors, speakers, strobes & field modules.
FireSense TPS cables are the ONLY TPS cable in Australia to be ActivFire Certified! They are double insulated with a red outer sheath marked as ‘fire alarm cable’, which is easy to strip, install and terminate. This range features WSX1 mechanical protection to AS/NZS 3013 & is compliant with AS1670.1.2018 Fire Alarm Installation Standards. Proudly, it was the first cable in Australia to be licensed under Best Environment Practice PVC v2.0 ensuring it meets Green Building Code Australia / Green Star requirements.
FireSense TWISTED TPS cable is used for ELV applications & cabling between addressable fire panels & ancillary devices.
Additional products in the FireSense TPS Fire Alarm range include:-
- ‘Flat TPS’ cable is used for ELV applications & cabling from Fire Alarm systems to ancillary devices & detection circuits.
- ‘Flat White Stripe’ TPS cable enables installer to distinguish between speaker & detector circuits. It is used for speaker feeds/audio circuits & must be used for OWS & EWIS Systems as per AS1670:2018.
- ‘Twisted Screened’ TPS Cable for ELV applications & cabling of VESDA & other communication networks.
Refer to each panel manufacturer for their wiring requirements. More information can be found on the specific product pages/data sheets, or our expert cable team can help you to determine the best product for your project.
To view the full FireSense Cable Range booklet click here.
