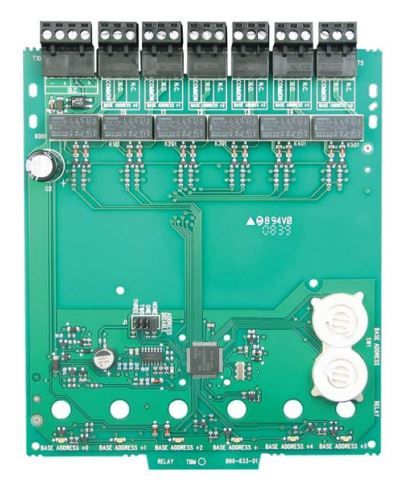

FlashScan 6 Relay Output Module
Code : SS-XP6R
Product availability : NSW, ACT, VIC, TAS
- Individual addresses
- Common loop input
- Quick release terminals
- DGP box ready for 1 to 8 modules
- Clean contact outputs
The SS-XP6R is a 6 Relay Control Module for use with the FireSense 2800 & 3030 Series intelligent alarm system.
A single isolated set of dry relay contacts is provided for each module, which is capable of being wired for either normally open or normally closed for each operation.
Each module has its own address. A pair of rotary code switches is used to set the address of the first module. The remaining modules are automatically assigned to the next five higher addresses. Provisions are included for disabling a maximum of three unused modules to release the addresses to be used elsewhere (you will need to powercycle the module for this to take effect). Each XP6-R module also has panel controlled green LED indicators. The panel can cause the LEDs to blink, latch on, or latch off.
The SS-XP6R requires external 24Vdc.
